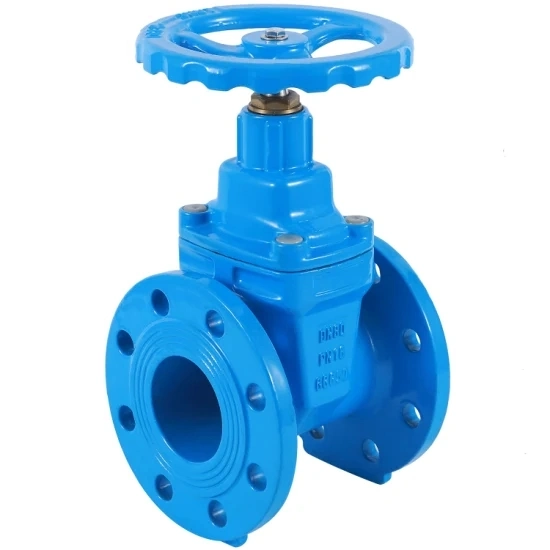

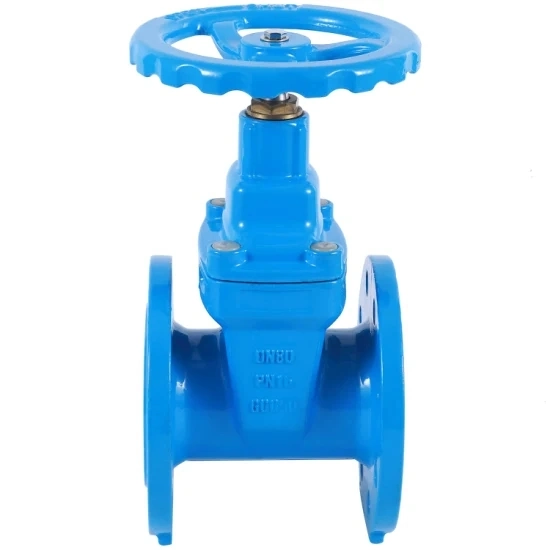

SHSUOTE - Water Supply Grade Project-Specific Resilient Seated Gate Valve Non-rising Stem Gate Valve

Our engineers and employees are well trained to utilize state-of-the-art technologies skillfully. So Water Supply Grade Project-Specific Resilient Seated Gate Valve can be specially designed to meet the widely varying needs. At present, it is typically used in the field(s) of Gate Valve.

SEND INQUIRY NOW

Type:: Direct-acting

Pressure:: Ordinary Temperature

Connection Form:: Flange

Material:: Cast Iron

Media:: Water

Temperature:: Low Temperature

product_price:: US$48/Piece|1Piece(Min.Order)

SEND INQUIRY NOW

Products Details

Shanghai Suote Valve Co.,Ltd. boasts strong R&D capabilities and has been working on product development for years. Water Supply Grade Project-Specific Resilient Seated Gate Valve is our newly-developed product and goes on sale starting now. It is designed to cater to the changing demands and requisites of customers. In the future,Shanghai Suote Valve Co.,Ltd. will open up channels for introducing talents, and improve technological innovation capabilities by introducing more outstanding talents as intellectual support, so as to achieve better and faster development.

Product Description

Shanghai Suote Company produce DIN Cast Iron Flange Gate Valve, NRS Gate Valve, OS&Y GATE VALVE,

1- Body/Bonnet: GGG40/50

2- Stem: SS420/431

3- Bolts/Nuts: SS304

4- Wedge: GGG40/50 + EPDM Coating

5- Epoxy Resin coating internal & external, thickness above 300 micron

6- Rising stem & Non-rising stem type

7- Flange or Socket Or Groove Ended

8- Work pressure: PN10/16; Size range: 1", 1 1/2", 2" to 24"

9- Design Standard: DIN F4/F5, BS5163, AS2638.2, AWWA, GB;

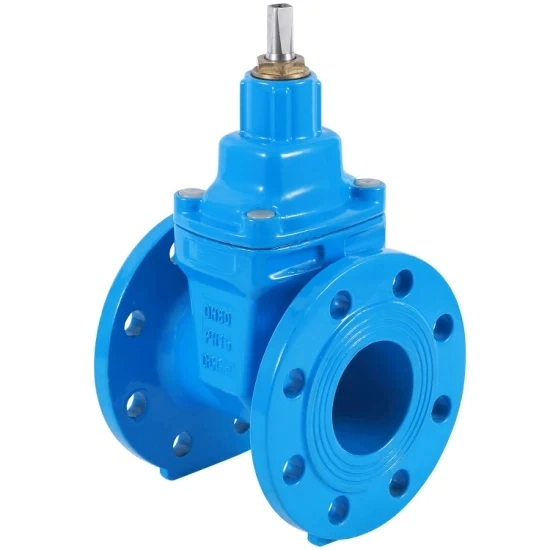

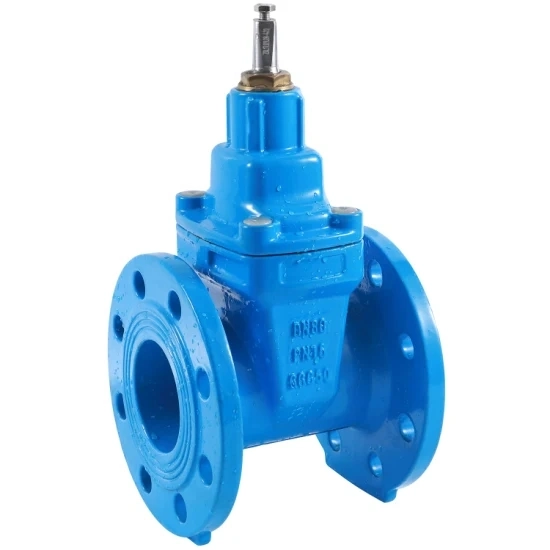

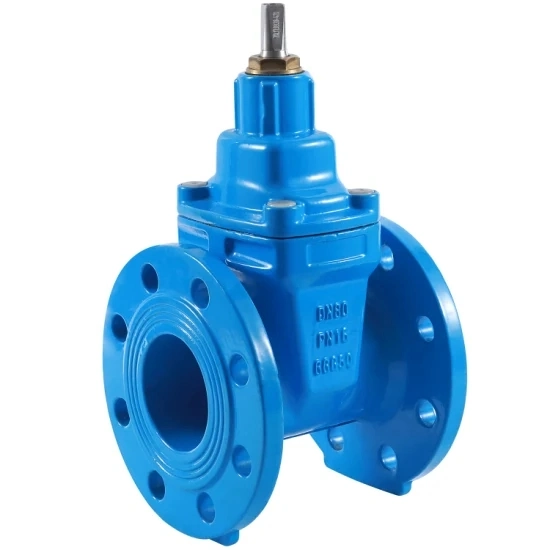

10- Operate: Handwheel or Stem Cap

Specification

SIZE DN40-600

CLASS	PN10/16 CL125/150
DESIGN	EN1171,EN1074-2,AS2638
FACE TO FACE	EN558-1.ASME B16.10₅AS2638
END FLANGE	EN1092-2,ASME B16.1/16.42₅AS4087
TESTS	EN12266

MATERIAL LIST

STANDARD MATERIALS OF MAIN PARTS				STANDARD MATERIALS OF MAIN PARTS
ITEM	PART NAME	MATERIAL	STANDARD	ITEM	PART NAME	MATERIAL	STANDARD
1	Disc	Ductile Iran	DIN1693/BS EN1563	11	Bolts	C45E/1045/A2	DIN 1693/BS EN1563
2	Disc Ring	Brass	HP59-1	12	Handwheel	Ductile Iron	HP59-1
3	Body Ring	Brass	HP59-1	13	Stud	C45E/1045/A2	HP59-1
4	Body	Ductile Iron	DIN 1693/BS EN1563	U	Stuffing Box	Ductile Iron	DIN 1693/BS EN1563
5	Stem Nut	CuZn39Pb1/C37000	EN12167/ASTMB135	15	Stuffing Gland	Ductile Iron	DIN 1693/BS EN1563
6	Bonnet Gasket	NBR	ISO4633	16	O-Ring	NBR	ISO4633
7	Stem	X20Cr13/SS420	EN10088-1/ASTMA959	17	Bonnet	Ductile Iron	DIN 1693/BS EN1563
8	O-Ring	NBR	ISO4633	18	Bolts	C45E/1045/A2	EN 10083-2/ASTMA29
9	O-Ring	NBR	ISO4633	19	Gasket	C45E/1045/A2	EN 10083-2/AST MA29
10	Sealing Shim	PVC-U		20	Nut	C45E/1045/A2	EN 10083-2/ASTMA29

DIMENSIONS

DN	OUTLINE mm					END FLANGE PN10/16-CL125/150 mm
DN	BS5163	DIN-F4	DIN-F5	ASME B16.10	AS2638	EN1092-2			ASME B16.1/B16.42				AS4087
	L					D	K	n-d	D	K	n-d	D	K	n-d
40	165	140	240	-	-	150	110	4-(019	127	98.5	4-016	-	-	-
50	178	150	250	178	-	165	125	4-(019	152	120.5	4-® 19	-	-	-
65	190	170	270	190	-./	185	145	4-019	178	139.5	4-CD19	-	-	-
80	203	180	280	203	203	200	160	8-019	191	152.5	4-019	185	146	48
100	229	190	300	229	229	220	180	8-019	229	190.5	8-G19	215	178	4-018
125	254	200	325	254	-	250	210	8-019	254	216	8-022	-	-	-
150	267	210	350	267	267	285	240	8223	279	241.5	8-® 22	280	235	8-018
200	292	230	400	292	292	340	295	8-023/12-023	343	298.5	8-022	335	292	8-018
250	330	250	450	330	330	395/405	350/355	12-023/12-028	406	362	12-025	405	356	8-022
300	356	270	500	356	356	445/460	400/410	12-023/12-028	483	432	12-425	455	406	12-022
350	381	290	550	381	381	505/520	460/470	16-023/16-C28	533	476	12-026	525	470	12-026
400	406	310	600	406	406	565/580	515/525	16-028/16-<D31	597	540	16-020	580	521	12-026
450	432	330	650	432	432	615/640	565/585	20-020/20-031	635	578	16-032	640	584	12-026
500	457	350	700	457	457	670/715	620/650	20-020/20-034	699	635	20-032	705	641	16-026
600	508	390	BOO	508	508	780/840	725/770	20-031/20-0)37	813	749	20-035	825	756	16-030
